Piezo sensor KS：
The vibration sensors of the KS series are used to detect absolute vibrations on machines and system components in the frequency range of approx. 0.5Hz to 10kHz and temperature range of -20 to 120°C. The PIEZO sensors work according to the shear principle with IEPE supply.
The shear principle PIEZO sensors with IEPE supply provide a voltage signal proportional to the acceleration, which is modulated onto the phantom supply.
The robust, double-shielded stainless steel housing ensures good signal quality even in rugged industrial applications with EMC exposure.
Piezo sensor KS：
Robust, double-sealed stainless steel housing
Insulated housing to avoid ground loops
Double shielding for improved EMC protection
M12 connector for easy mounting
Measurement in all directions
Temperature range from -20 ... 120°C
Technical data

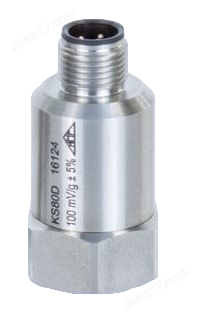

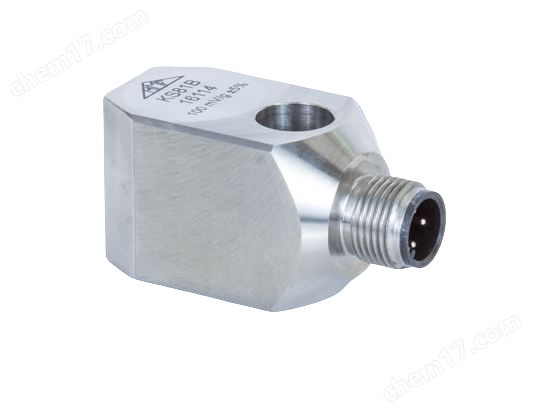

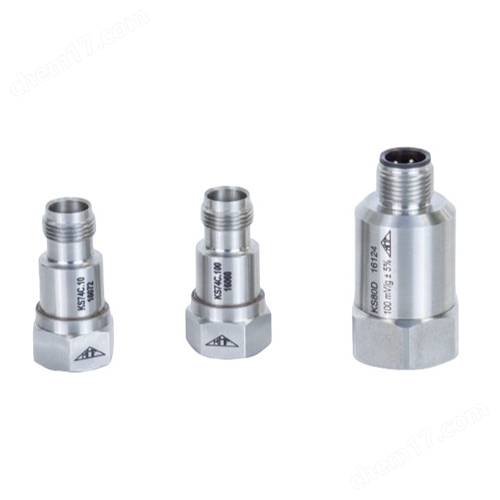

KS80D | KS81B | KS74-C10 | |
Output | IEPE | IEPE | IEPE |
Measuring principle | PIEZO, Shear principle | PIEZO, Shear principle | PIEZO, Shear principle |
Sensitivity | 100mV/g ± 5% | 100mV/g ± 5% | 10mV/g ± 5% |
Measuring range | ±55g | ±60g | ±600g |
Fracture acceleration | 4000g | 4000g | 5000g |
Linear frequency response f5% | 0,4 ... 13000 Hz | 0,4 ... 13000 Hz | 0,35 ... 8000 Hz |
Resonant frequency +25dB | > 32 kHz | > 23 kHz | >42 kHz |
Transverse direction factor | < 5% | < 5% | < 5% |
Inherent noise (rms value; 0.5 Hz - 20 kHz) | < 300 µg | < 300 µg | < 300 µg |
Noise densities 100 Hz | 1 μg/√Hz | 1 μg/√Hz | 2 μg/√Hz |
Constant current supply | 2 .. 20mA | 2 .. 20mA | 2 .. 20mA |
Operating point voltage at ICONST = 4 mA | 12 .. 14 V | 12 .. 14 V | 12 .. 14 V |
Output impedance at ICONST = 4 mA | < 130 Ω | < 130 Ω | < 130 Ω |
Working temperature range | -20 / 120 °C | -20 / 120 °C | -20 / 120 °C |
Temp. coefficient of sensitivity | ±0,05 %/K (-20 .. 0°C) >-0,02 %/K (0 .. 30°C) >-0,07 %/K (30 .. 120°C) | ±0,05 %/K (-20 .. 0°C) >-0,02 %/K (0 .. 30°C) >-0,07 %/K (30 .. 120°C) | ±0,06 %/K (-20 .. 0°C) >-0,02 %/K (0 .. 80°C) >-0,06 %/K (80 .. 120°C) |
Temperature jump sensitivity | 0,01 ms-2/K | 0,01 ms-2/K | 0,1 ms-2/K |
Degree of protection | IP67 | IP67 | IP64 |
Ground without cable | 65,5g | 102g | 28,5g |
Case material | Stainless steel | Stainless steel | Stainless steel |
Cable connection | axial | radial | axial |
Socket | Binder 713 | Binder 713 | TNC |
Mounting thread | M8 | M8 | M5 |
Special designs on request
